From part to art

Written by By Alan Richter

Above: The Baird sculpture is an example of an artistic-rendered project by Metalistics.

A fabricator in Washington state uses a new cutting tool to create public art

May 2022 - Fabricating high-end residential and public art requires a machine tool that’s versatile enough to cut a variety of materials and programming software that is user friendly. Scott Gallagher, a partner at Metalistics, says he found what the Everett, Washington-based manufacturer needed in the Mach 500 abrasive waterjet cutting machine and the FlowXpert software for 3D modeling and programming from Flow Waterjet. In addition to waterjet cutting, Metalistics provides rolling, forming, fabrication, installation and design services. The company’s other partner is Scott’s brother, Chris, and eight employees work 10-hour shifts four days a week at Metalistics’ 10,000-square-foot facility. The two brothers founded the company 20 years ago.

Purchased in spring 2021, the Mach 500 with the Dynamic Waterjet XD cutting head replaced the company’s previous Flow waterjet machine, which worked well but did not have taper control, Gallagher says. The latest model features taper control, as well as 5-axis capabilities. “We were constantly shimming the head to get straight cuts out of [the older machine].”

MM 0522 waterjet image1

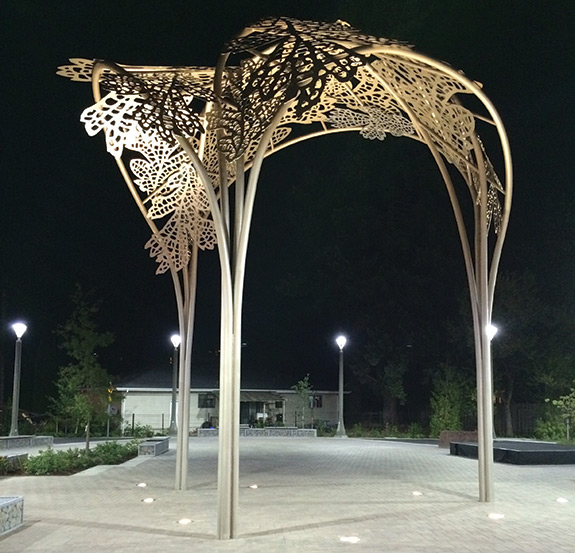

Metalistics specializes in fabricating public art that frequently involves waterjet cutting, such as the Trimet Station sculpture.

The 5-axis head proves advantageous, for instance, when cutting intricate stair stanchions for a table rail and when holes need to be pierced at an angle that matches the stairs and enables a cable to run correctly through a pipe, he says. “It’s quite a machine.”

The Mach 500 has the HyperJet 94,000-psi intensifier pump from Flow. The previous machine’s pump was rated at 60,000 psi, Gallagher explains, but the fabricator runs the ultrahigh-pressure pump at about 80,000 psi to extend its life between rebuilds. “We’re still cutting faster than we were with the old one.”

When shopping for the new waterjet, Gallagher says he didn’t want to limit his options or accidentally overlook a new technology, so he conducted research. All that research brought him back to Flow. For example, he found people are typically happier with Flow waterjets versus other brands. “That kind of steered us back to what we already knew.”

MM 0522 waterjet image2

The Mach 500 at Metalistics has the Dynamic Waterjet XD cutting head, which provides 5-axis motion that is capable of cutting compound angles.

Shaping steel and more

Metalistics uses its machine to cut steel, aluminum, bronze, brass and titanium, as well as plastic, glass and granite. “We’ve been doing work for granite shops, cutting circular tops with a tapered edge on them. We’ll try just about anything,” Gallagher says, adding that the waterjet is successful the vast majority of the time. “Of course, we have failures but that’s all part of the learning curve.”

The company also serves laser cutting shops that are unable or too busy to perform all of the incoming orders in house, he adds. “We do a lot of outside work.”

For its own fabrication projects, Gallagher says Metalistics is gravitating more toward waterjet cutting and rarely shears parts anymore.

“We use the waterjet for just about everything now. The guys have gotten so lazy that nobody likes to drill holes or anything anymore and lay them out,” he quips. “They can draw it right on the screen and cut the plate with the holes in it.”

MM 0522 waterjet image3

These two public artworks are titled Sonic Bloom and Nebulou.

Gallagher adds that Metalistics tries to keep as much work as it can in house. “I rarely buy anything cut to size anymore from the metal suppliers unless it is something I can’t do.”

Gallagher says he also appreciates that waterjet cutting doesn’t create a heat-affected zone on workpieces, which prevents discoloration, and because most architectural metal components must be aesthetically attractive.

Because Metalistics previously ran a Flow waterjet, its machine operators didn’t have to take any classes for the new one, but a Flow technician did come to set up the machine and provide a quick overview on how to operate the upgraded system.

Although the FlowXpert software for 3D modeling and programming was new to the fabricator, Gallagher says the software is intuitive and enables Metalistics to directly import from the 3D CAM programs it uses. “It’s a really awesome program for modeling and programming the machine for the 3D cuts.”

MM 0522 waterjet image4

Metalistics performs abrasive waterjetting with the Mach 500 waterjet machine and the FlowXpert software for 3D modeling and programming.

Care package

The waterjet came with FlowCare Complete, a customer care package in which Flow basically takes care of everything for two years, according to Gallagher. As part of the package, Flow tracks how many hours the machine operates and will replace the pump when the machine reaches 300 hours of operation, which has already occurred at Metalistics, and then it rebuilds the old pump.

The package also covers replacement parts, but very little service work has been needed, he says. “We had a couple of parts go bad, but we’ve been doing this for so long that we just install them [ourselves].”

Metalistics purchases garnet abrasive separately. “We just have the tank pumped out periodically, and it’s not a problem getting rid of it,” Gallagher says. “You have to test it before the garnet is disposed of.”

Gallagher says Metalistics runs its waterjet programs through simulation software and then performs a dry run on the machine before actually cutting a part. Sometimes, however, the simulation will go smoothly but the machine won’t like the program for some reason, which he refers to as crashing, but no damage to the machine occurs. “You just reset the machine after it shuts down.”

To troubleshoot a programming issue, Gallagher says he sends to the program to Flow and the machine builder’s programming specialists will determine the cause. “It’s all part of the game.”

Gallagher says Metalistics is “super busy” and doesn’t see the demand for its public art and other projects subsiding anytime soon. And if the fabricator needs more waterjet machining capacity, Metalistics will go with Flow.
